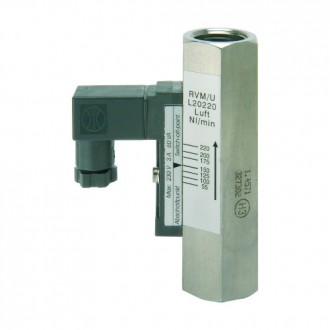

RVM/U-L2
FLOW MONITOR FOR GASES
CAN BE COMBINED WITH OUR SENSORS SIGNAL 4.0, SIGNAL 4.0 IO PRO AND MONITOR 4.0
small physical size
sturdy construction
installation in any orientation
Operation:
The flow monitors type RVM/U-L2 operate with the float measuring principle.
SPECIFICATIONS
for gaseous media (2,5 - 525 Nl/min)
max. operating pressure:
brass lead-free: 100 bar
(optional 160 bar)
stainless steel: 350 bar
operating temperature:from -20°C to 120°C
(optional -20°C to 160°C)
DOCUMENTS
(Click on the name to download directly)
DATASHEET SG-15 (15x50)
DATASHEET SG-30 (30x70)
MANUAL BASICS
Manual BASICS Switch Contact 15x50
Manual BASICS Switch Contact 30x70
MANUAL ATEX
Manual ATEX Switch Contact 15x50
Manual ATEX Switch Contact 30x70
DIRECTIVES
EMC-DIRECTIVE 2014/30/EU
LOW VOLTAGE DIRECTIVE 2014/35/EU
EU DECLARATION OF CONFORMITY 2014/34/EU
2014/34/EU ATEX 15x50 DoC 1
2014/34/EU ATEX 15x50 DoC 2
2014/34/EU ATEX 30x70 DoC 1
2014/34/EU ATEX 30x70 DoC 2
